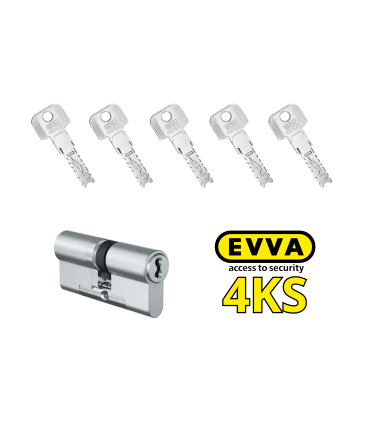

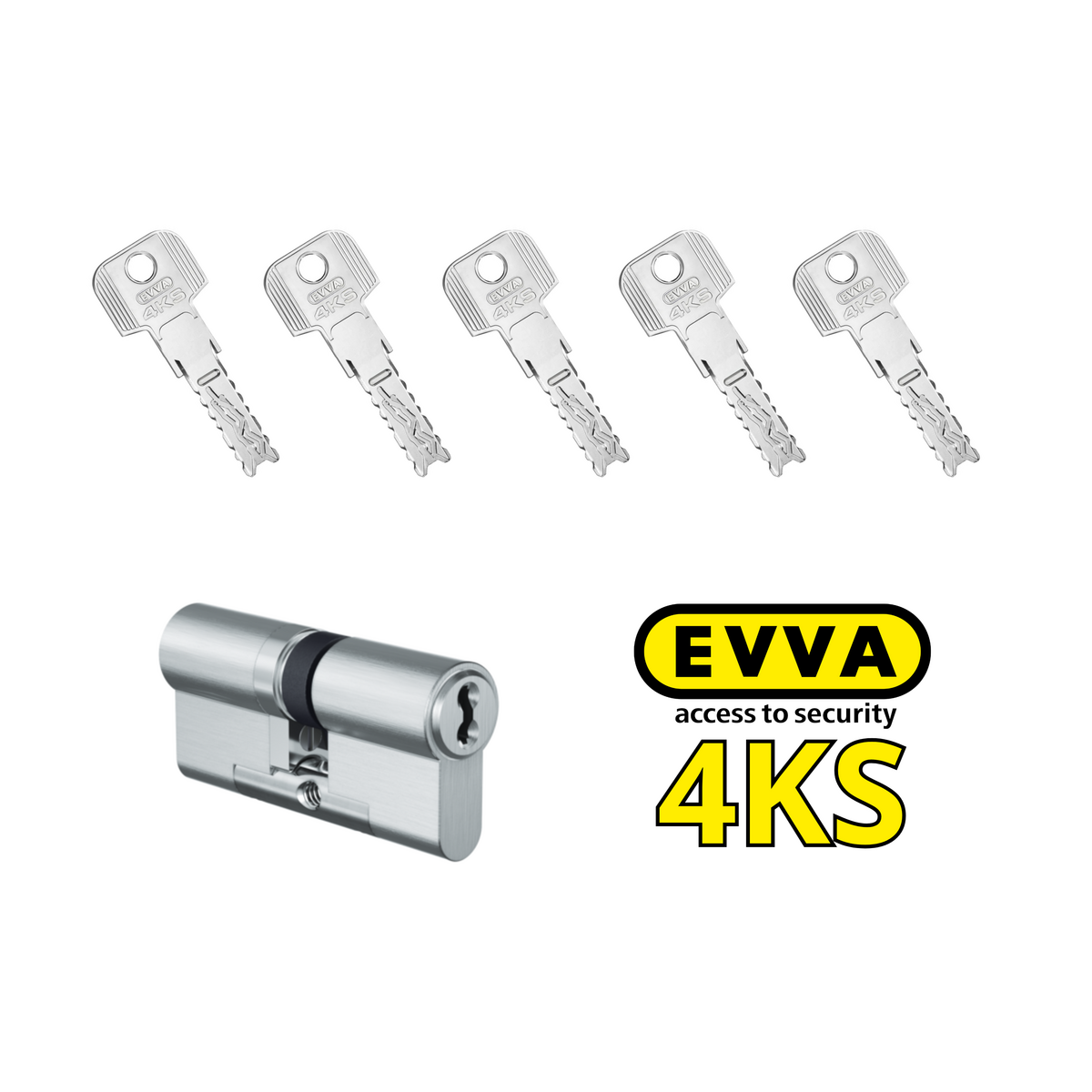

European Security Cylinder EVVA 4KS Plus 5 Keys Clutched various sizes

EVVA 4KS PLUS 5 KEYS CLUTCHED

4KS SPRINGLESS SECURITY

The 4-curve system is the strongest of all mechanical locking systems.

With its patented springless curve technology, 4KS is ideal for heavy-duty use.

The reversible key fits snugly and turns gently and lightly in the cylinder. Overlapping curves made by micro-milling ensure maximum security

ADVANTAGES OF 4KS

Unlike other locking systems, the patented 4KS system features springless technology.

In the 4KS system, the locking elements are moved into the 4KS cylinder by curve milling of the key. 12 very strong, springless locking pins are brought into certain positions by the forced control of the 6 key bends and interrogated through 2 alignment pins. A control bar in the rotor controls the additional key coding. In all, 4KS keys are interrogated four times. Three times more than conventional systems for the highest possible security.

The 4KS cylinder features a modular structure (SYMO) and, therefore, can be adapted directly on site to the respective door situation. It is also possible to modify the 4KS cylinder on-site so that it fulfills a certain function (e.g., so that it can be operated with the key inserted on both sides). This saves time and costs.

Anti-picking and anti-pondering protection

The 4KS cylinder is equipped with multiple locking pins.

It is not possible to identify which locking pin acts in the specific case. Due to the moving position of the locking elements in the rotor, it is almost impossible to probe the appearance of the milled surface in order to create a duplicate. In addition, the absence of springs offers protection against "bumping."

Anti-puncture protection

Tungsten carbide pressure sliders and anti-puncture protection on the body effectively protect the 4KS cylinder from being punctured.

Anti-extraction and anti-tear protection

Tungsten carbide pressure sliders and modular construction (SYMO) provide effective protection against pulling and tearing attempts.

4KS key

The 4KS reversible wrench equipped with unique rounded tips is very easy to use.

The high-quality nickel silver alloy and low-friction coating of all locking elements ensure maximum wear resistance, even under the most unfavorable conditions.

The distinguishing feature of the 4KS key is the overlapping curves made by micro-milling.

They make it virtually impossible to clone the key corresponding to the locking system.

In addition, the additional encryption ensures maximum security.

N.B. The product is supplied with 5 keys.
