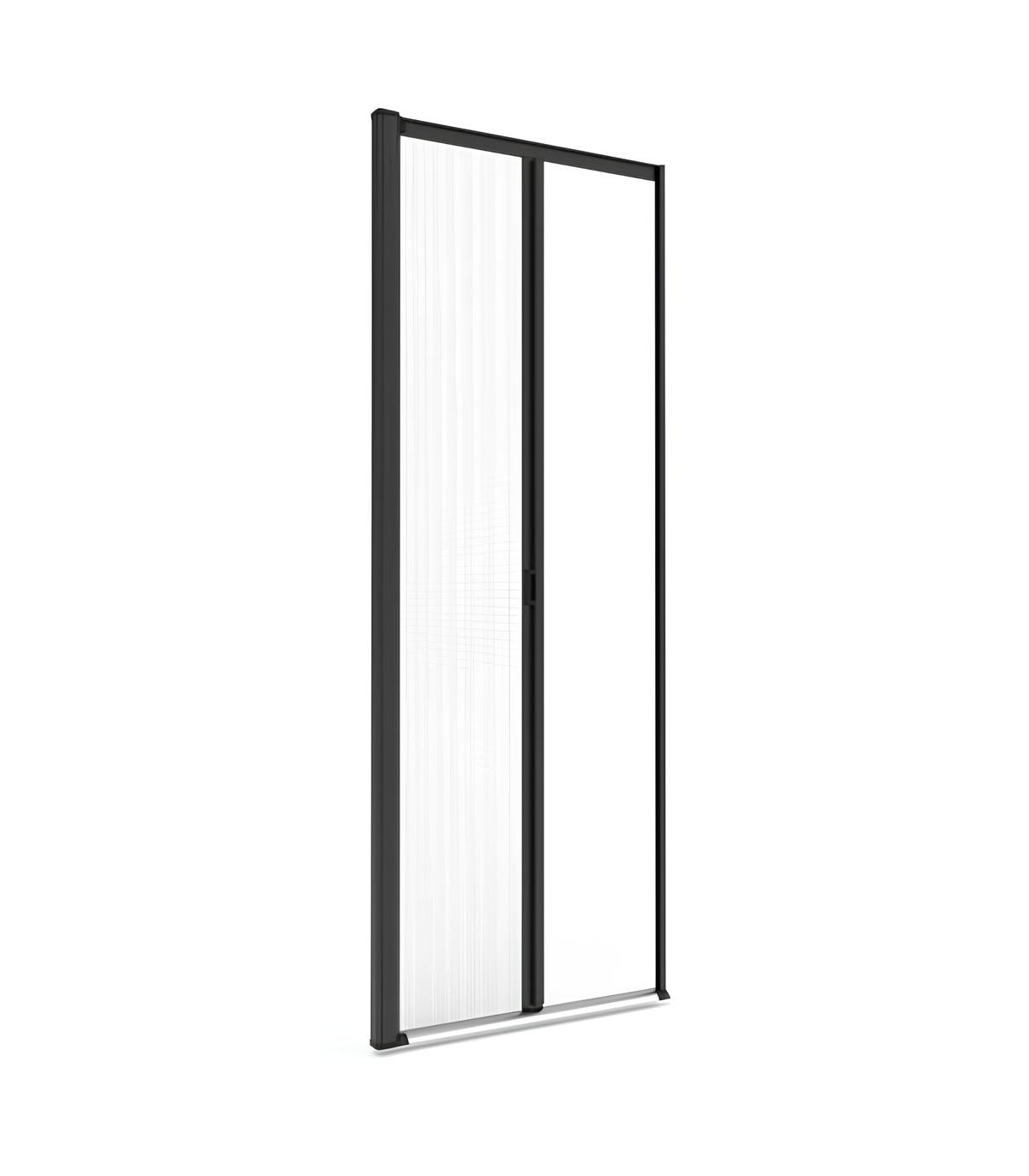

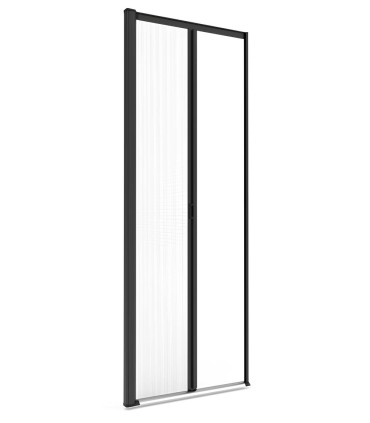

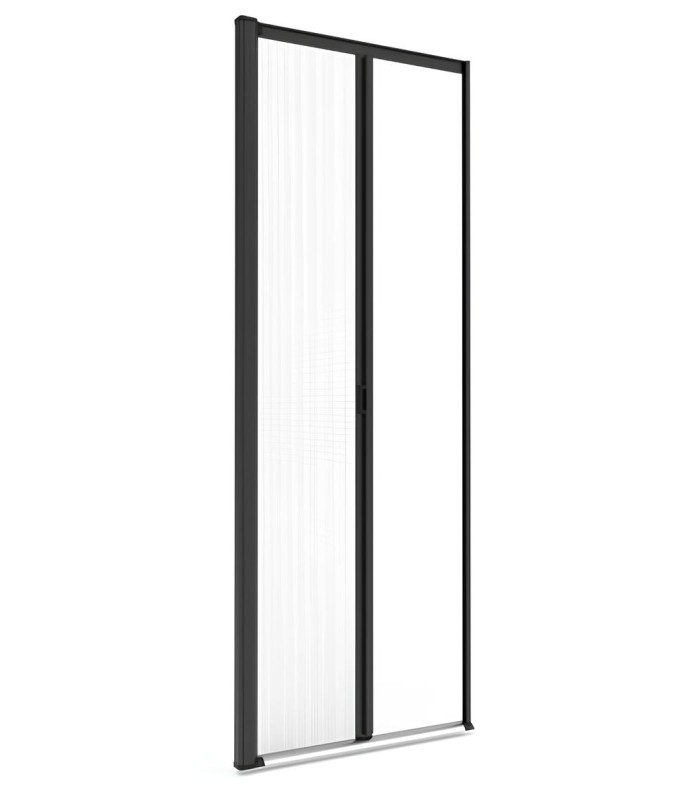

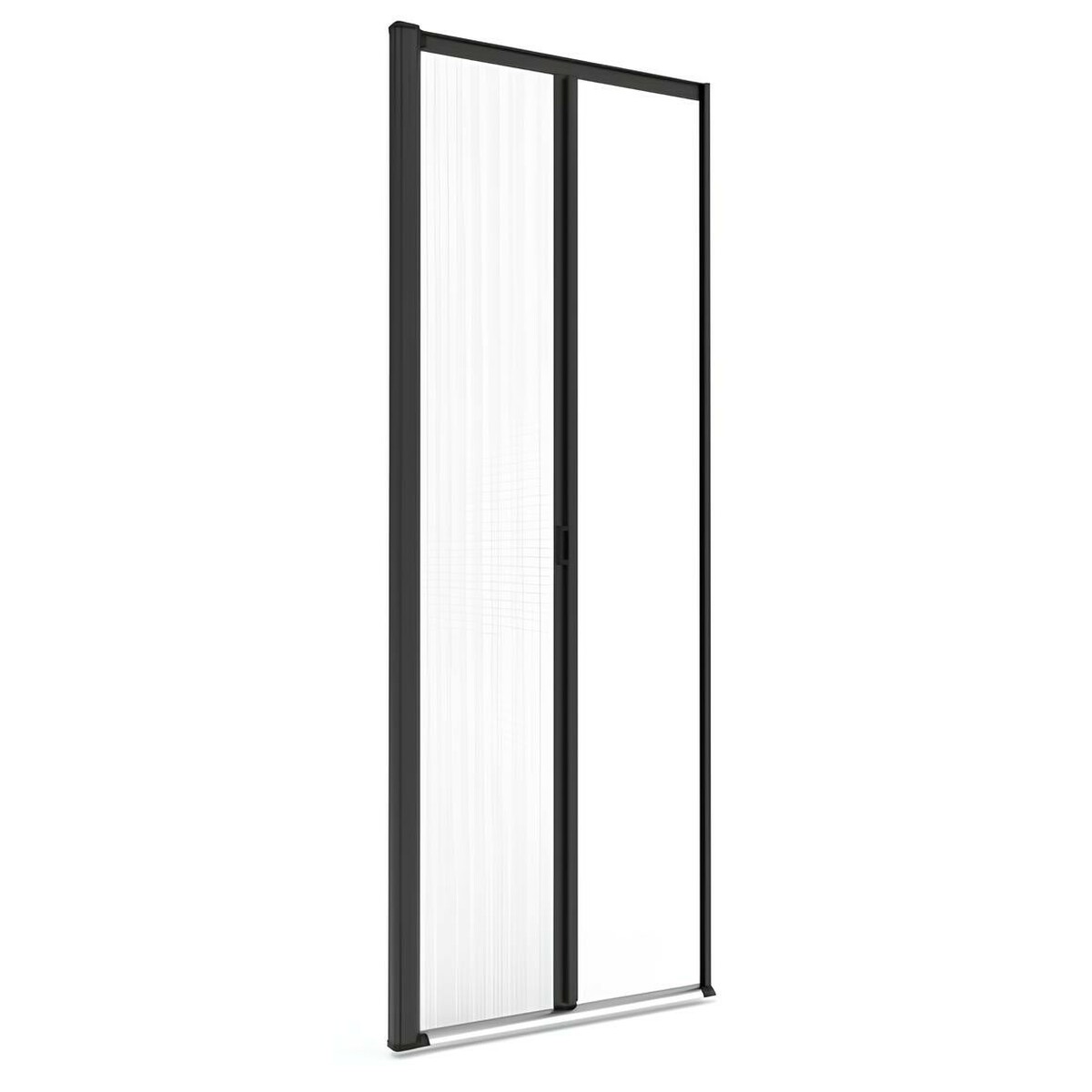

PRIME L Lateral spring mosquito net with anti-flexion bar rolling up for door with walkable rail

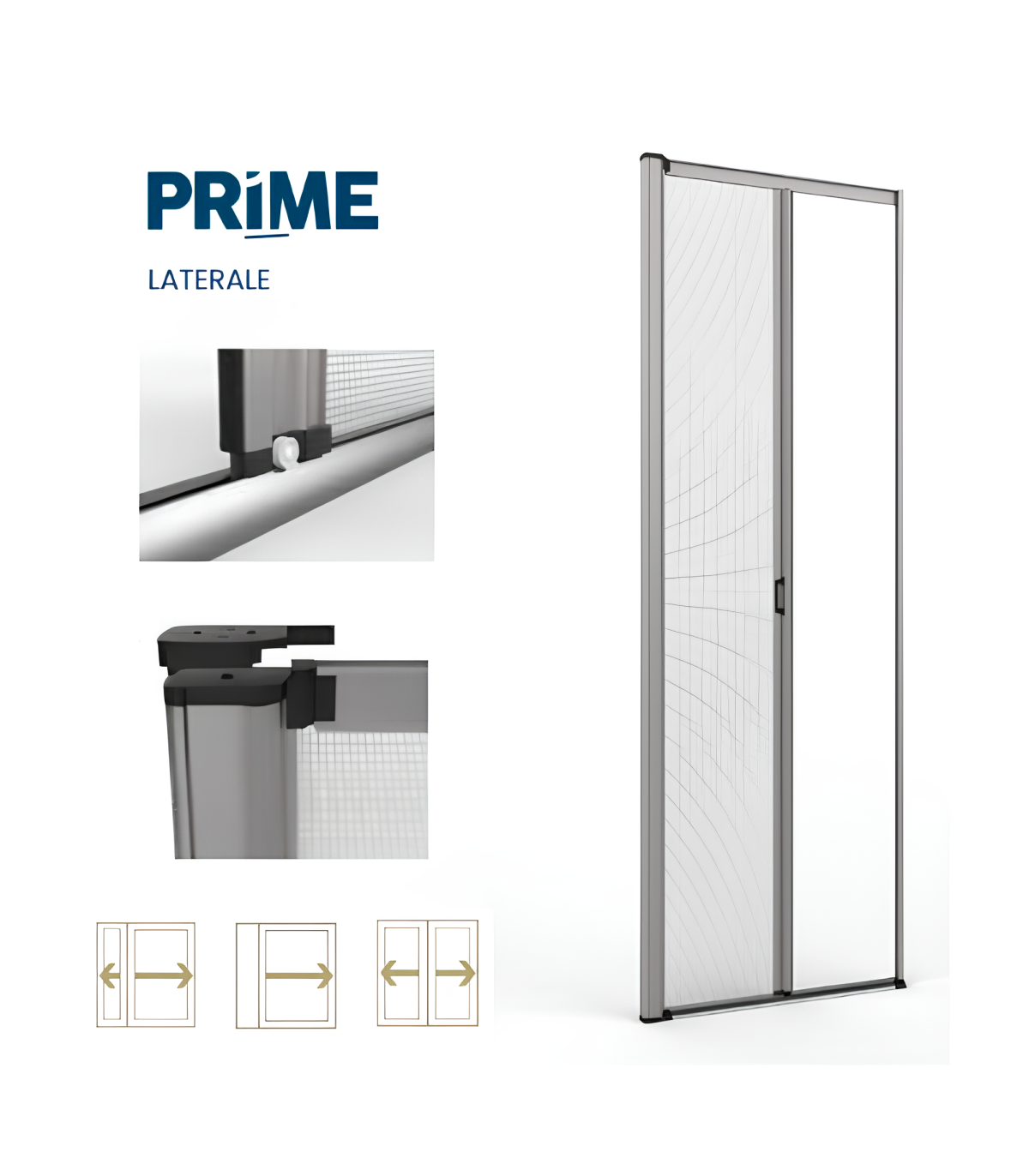

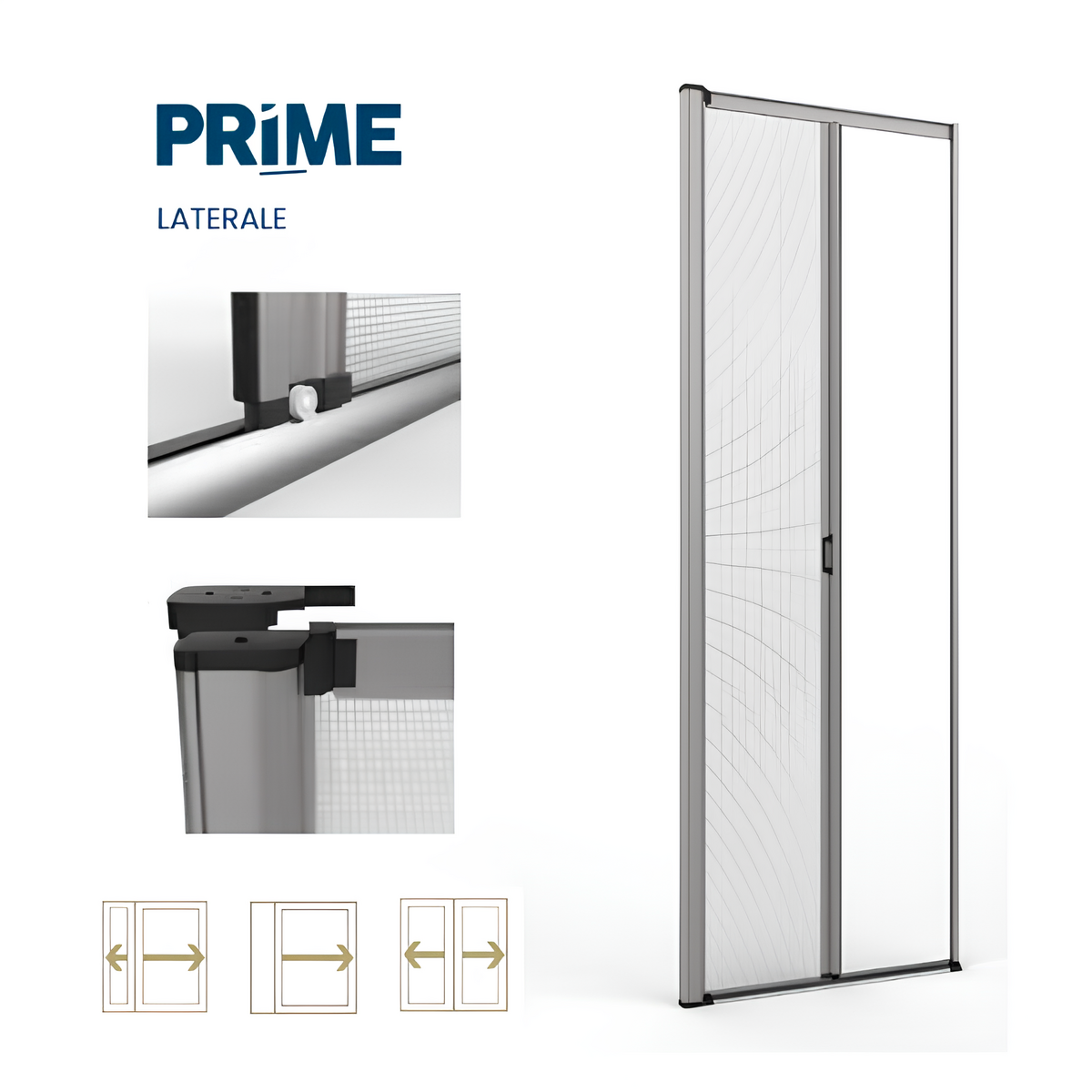

The new design in the side version allows for smooth maneuvering thanks to the anti-bending profile. It also allows the same control bar in the double leaf version, equipped with one with a retractable ratchet for the fixed side and the other magnetic for the movable side, thus achieving perfect symmetry of the uprights. Spring-loaded side winding with a 50-mm box with a low floor guide only 2 cm high and magnetic locking. The floor guide is only 2 cm high, plus the profile is fully rounded so it is walkable. Always supplied Silver OSS. Windproof button on the sides, prevent the fabric from slipping out of the guides in case of wind or accidental pushing. A practical tray handle is provided to facilitate opening and closing even from the outside.

Allowable fabrication sizes:

Maximum width 180 cm and maximum height 280 cm

-

Measurements survey:

THE FILOGRASSO SRL DOES NOT ASSUME RESPONSIBILITY 'ON INCORRECT MEASUREMENTS BY THE CUSTOMER, THE RETURN IS NOT 'POSSIBLE IF THE GOODS HAVE THE MEASURES IN ACCORDANCE WITH THOSE SPECIFIED BY THE CUSTOMER WHEN ORDERING. IN CASE OF ERROR ON OUR PART WE WILL SOLVE THE PROBLEM AS QUICKLY AS POSSIBLE (RETURN NOT ACCEPTED ON CUSTOM MADE ITEMS)

For proper operation, measurements should be taken at three points and the smallest of the three measurements should be entered into the configurator.

Example survey:

Width: Top (cm) 100.3 - Middle (cm) 100.1 - Bottom (cm) 100.4

Width to be entered (cm): 100.1

Height: Left Side (cm) 100.3 - Middle (cm) 100.1 - Right Side (cm) 100.4

Height to insert (cm): 100.1

-

Light Measure and Finished Measure:

Light Measure(precise dimension of the compartment)= exact measurement of the compartment, to this measure we will deflate the millimeters required for proper installation.

Finished Measurement(exact size of the insect screen)= exact measurement of the insect screen, to this measurement you have deflated YOU the millimeters needed for proper installation.

Finished Measurement (exact size of the insect screen) = Light measurement (precise dimension of the compartment) subtracting 2 mm

Example: Light measurement 100 cm = Finished measurement 99.8 cm

-

Color:

Available color detail

-

Nets:

Attention for blackout and filter sheets the maximum height measurement is 180 cm only on 50 mm R box

Detail nets available

-

Spring type

The Slowed Spring system controls the rewinding of the fabric by slowing its rise evenly.

It can be installed on:

Model R Maximum height 260 cm

-

SHIPPING AND TIMING:

Shipment will take place within 6/7 working days (excluding Saturday, Sunday and holidays) from the date of receipt of payment, by courier 3 working days for shipments to Italy and 5/10 days for shipments to Europe.

-

WARRANTY

The shipment being insured needs acceptance subject to control at unloading by the customer.

In the absence of this observation the Filograsso srl does not assume responsibility for any damage.
