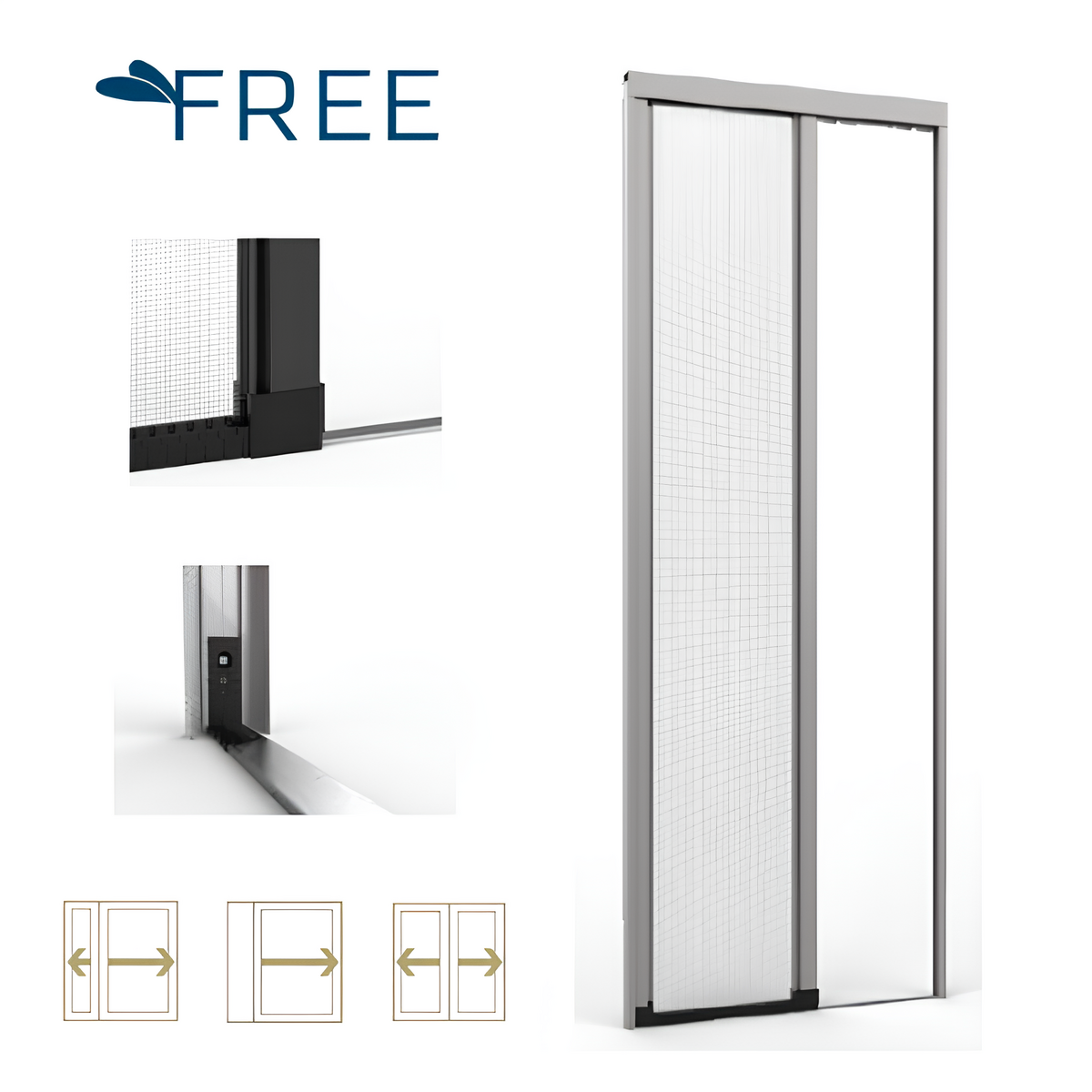

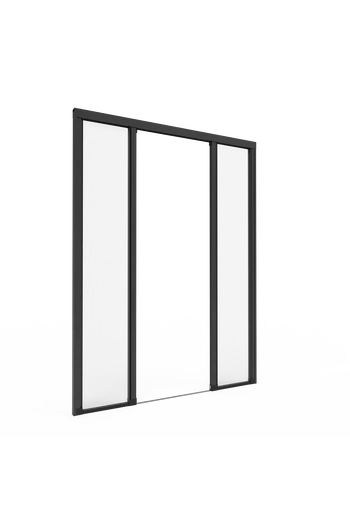

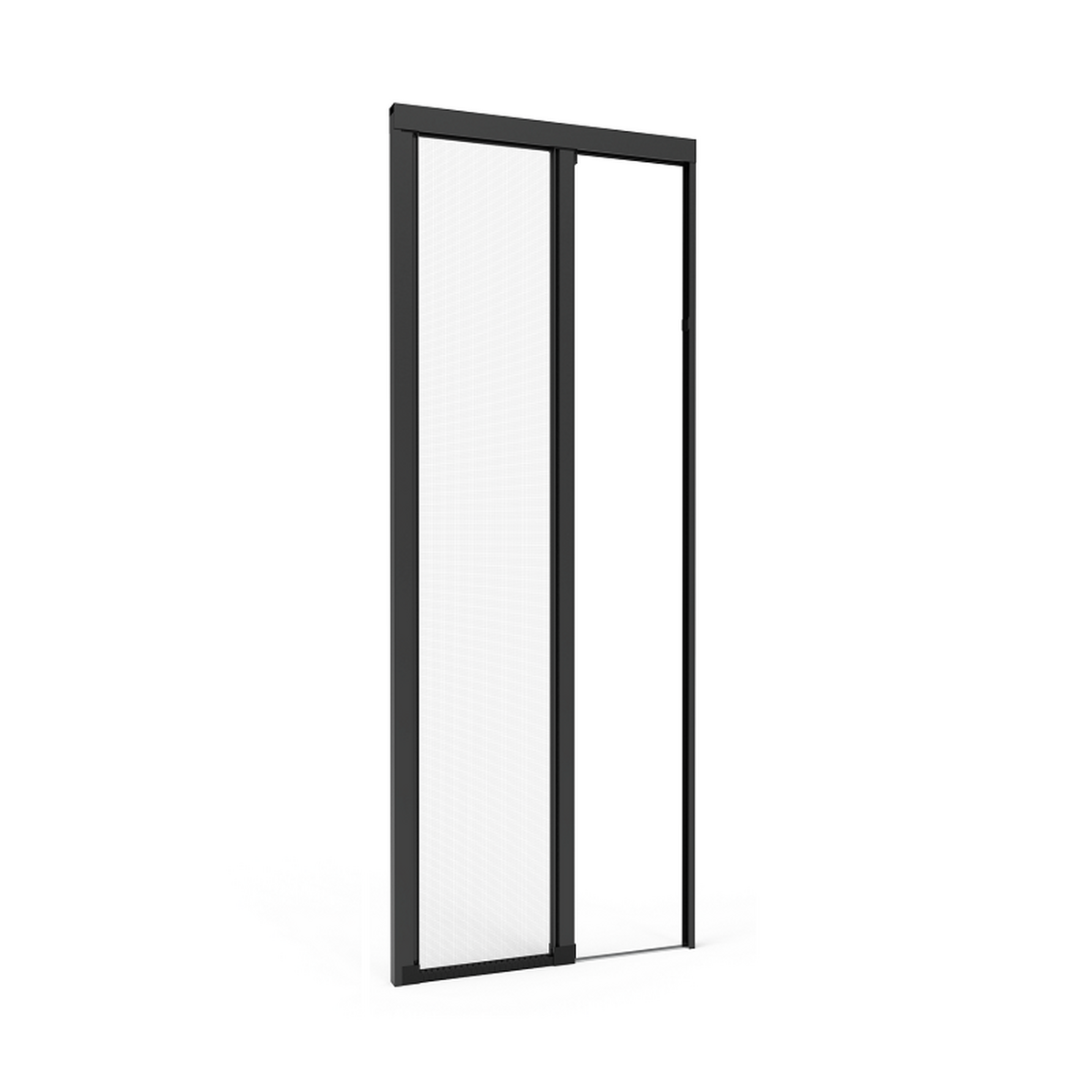

FREE SILENT Mosquito net side or center opening with open Carrarmato and 4mm rail suitable for door

Up to 5 meters tall and modular, the Free can span a width of 160 cm with a single module. The new mechanisms ensure exceptional lightness and quiet operation during opening and closing, which can be performed from either side. It is available as a pre-assembled kit packaged in a convenient box containing profiles, mesh, and a pre-loaded spring.

Permitted dimensions:

Maximum width 320 cm and maximum height 500 cm

Available with a center opening.

Maximum single module width: 160 cm.

-

Measurement guidelines:

FILOGRASSO SRL ASSUMES NO LIABILITY FOR INCORRECT MEASUREMENTS PROVIDED BY THE CUSTOMER; RETURNS ARE NOT ACCEPTED IF THE PRODUCT MEETS THE DIMENSIONS SPECIFIED BY THE CUSTOMER AT THE TIME OF ORDER. IN THE EVENT OF AN ERROR ON OUR PART, WE WILL RESOLVE THE ISSUE AS QUICKLY AS POSSIBLE (RETURNS ARE NOT ACCEPTED ON CUSTOM-MADE ITEMS)

For accurate results, it is recommended to take measurements at three points and enter the smallest of the three measurements into the configurator.

Measurement example:

Width: Top (cm) 100.3 - Middle (cm) 100.1 - Bottom (cm) 100.4

Width to enter (cm): 100.1

Height: Left Side (cm) 100.3 - Center (cm) 100.1 - Right Side (cm) 100.4

Height to be entered (cm): 100.1

-

Clear Opening Measurement and Finished Measurement:

Opening Measurement (precise dimensions of the opening) = exact measurement of the opening; from this measurement, we will subtract the millimeters necessary for proper installation.

Finished Measurement (precise size of the screen) = exact measurement of the screen; YOU have subtracted the millimeters necessary for proper installation from this measurement.

Finished Measurement (precise dimension of the screen) = Clear Opening Measurement (precise dimension of the opening) minus 2 mm

Example: Clear Opening 100 cm = Finished Measurement 99.8 cm

-

WARRANTY

Since the shipment is insured, it must be accepted subject to inspection upon unloading by the customer.

In the absence of this observation, Filograsso srl assumes no liability for any damages.
