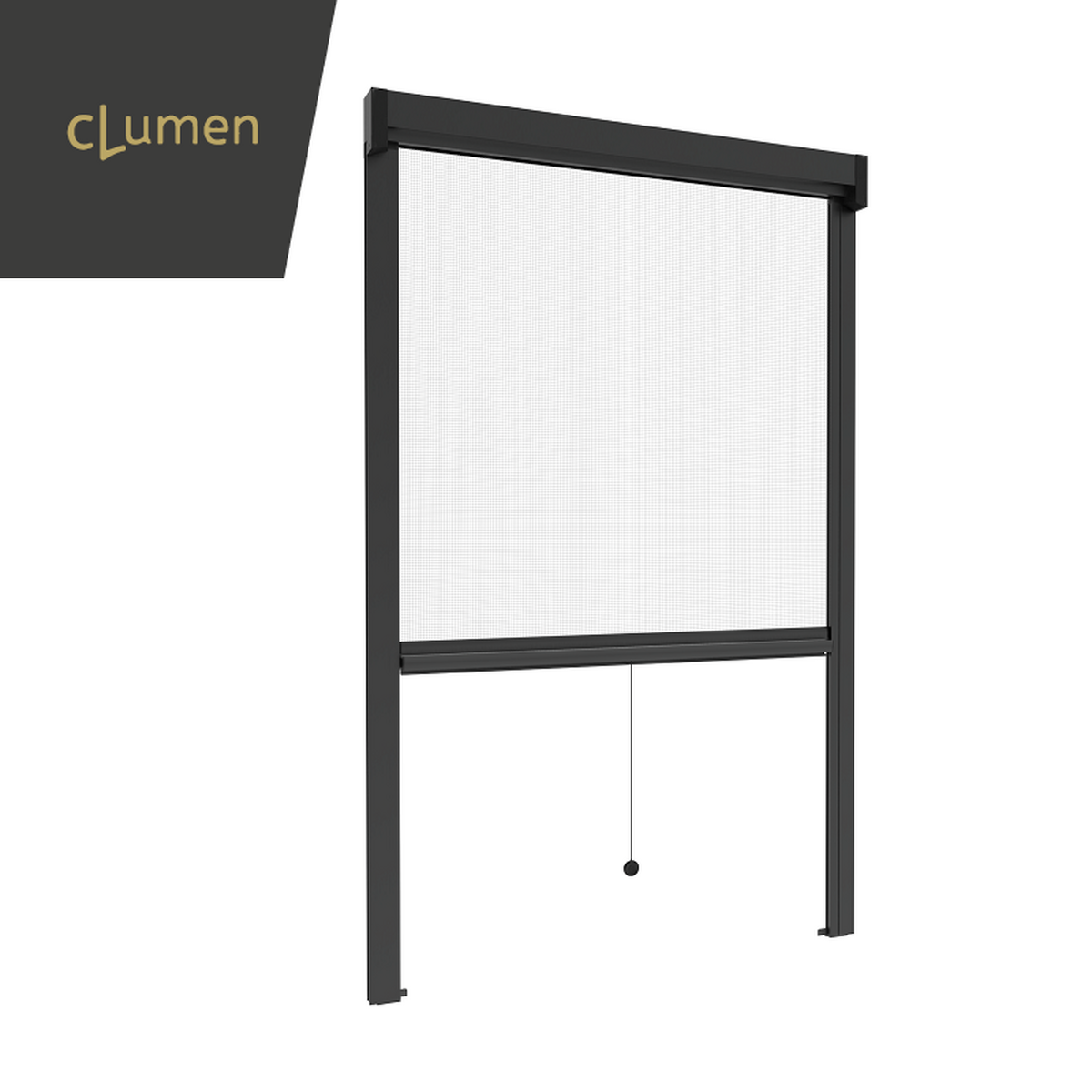

C-LUMEN Vertical Mosquito Net Windproof Pressure Mounting Soft Push&Clouse System suitable for window

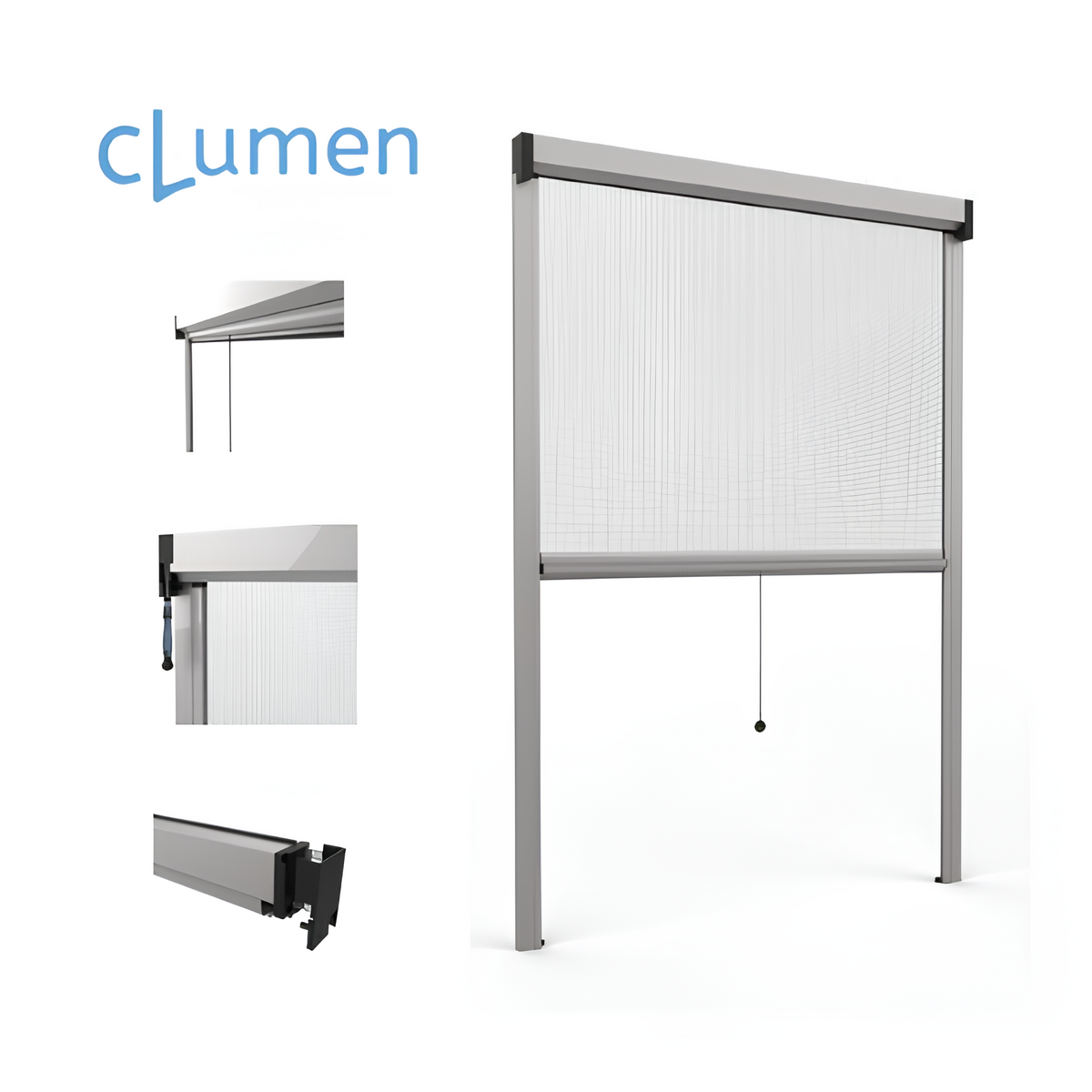

Clumen by Effe Trade is the next-generation vertical mosquito screen, offering innovative technical features combined with a design and level of comfort unmatched in the market. Installation is extremely simple, as the housing is designed for snap-fit installation. The end caps and top caps are pressed into place in the housing using a system of springs and hex screws, eliminating the need to drill into the wall. The handle bar features an ergonomic shape, a push-and-close mechanism, and a design that integrates seamlessly with the housing, completing its form once closed. The tracks feature a telescopic system that compensates for misalignment while maintaining smooth, safe, and easy operation. The engineers have not overlooked maintenance; in fact, it is no longer necessary to disassemble the screen to rewind the spring—simply remove a cover and rewind it using a worm screw. Its compact size and attention to detail make Clumen a top choice in its category. The handle bar features an ergonomic shape, a push-and-close mechanism, and a design that seamlessly integrates with the roller box, completing its shape once closed. The guides feature a telescopic system that compensates for misalignments while maintaining simple, smooth, and safe operation. The engineers did not overlook maintenance; in fact, it will no longer be necessary to disassemble the screen to rewind the spring—simply remove a cover and rewind it using a worm screw. For opening and closing the screen, the push & close system was chosen, ensuring maximum comfort in terms of usability. The handle bar also features a telescopic brush holder that compensates for minor misalignments.

Available sizes:

Width (cm) 60–180 and Maximum height 260 cm

-

Measurement guidelines:

FILOGRASSO SRL ASSUMES NO LIABILITY FOR INCORRECT MEASUREMENTS PROVIDED BY THE CUSTOMER; RETURNS ARE NOT ACCEPTED IF THE PRODUCT MEETS THE DIMENSIONS SPECIFIED BY THE CUSTOMER AT THE TIME OF ORDER. IN THE EVENT OF AN ERROR ON OUR PART, WE WILL RESOLVE THE ISSUE AS QUICKLY AS POSSIBLE (RETURNS ARE NOT ACCEPTED FOR CUSTOM-MADE ITEMS)

For accurate results, it is recommended to take measurements at three points and enter the smallest of the three measurements into the configurator.

Measurement example:

Width: Top (cm) 100.3 - Middle (cm) 100.1 - Bottom (cm) 100.4

Width to enter (cm): 100.1

Height: Left Side (cm) 100.3 - Center (cm) 100.1 - Right Side (cm) 100.4

Height to be entered (cm): 100.1

-

Clear Opening Measurement and Finished Measurement:

Opening Measurement (precise dimensions of the opening) = exact measurement of the opening; from this measurement, we will subtract the millimeters necessary for proper installation.

Finished Measurement (precise dimension of the screen) = exact measurement of the screen; YOU have subtracted the millimeters necessary for proper installation from this measurement.

Finished Measurement (precise dimension of the screen) = Clear Opening Measurement (precise dimension of the opening) minus 2 mm

Example: Clear Opening 100 cm = Finished Measurement 99.8 cm

-

Color:

Available colors

-

Mesh:

Note: For blackout and filter screens, the maximum height is 180 cm only on the 50 mm R-type box

Available mesh details

-

Spring type

The standard Slow-Close Spring system controls the retraction of the fabric, slowing its ascent evenly.

Can be installed on:

Minimum width 60 cm.

Maximum height 260 cm

-
