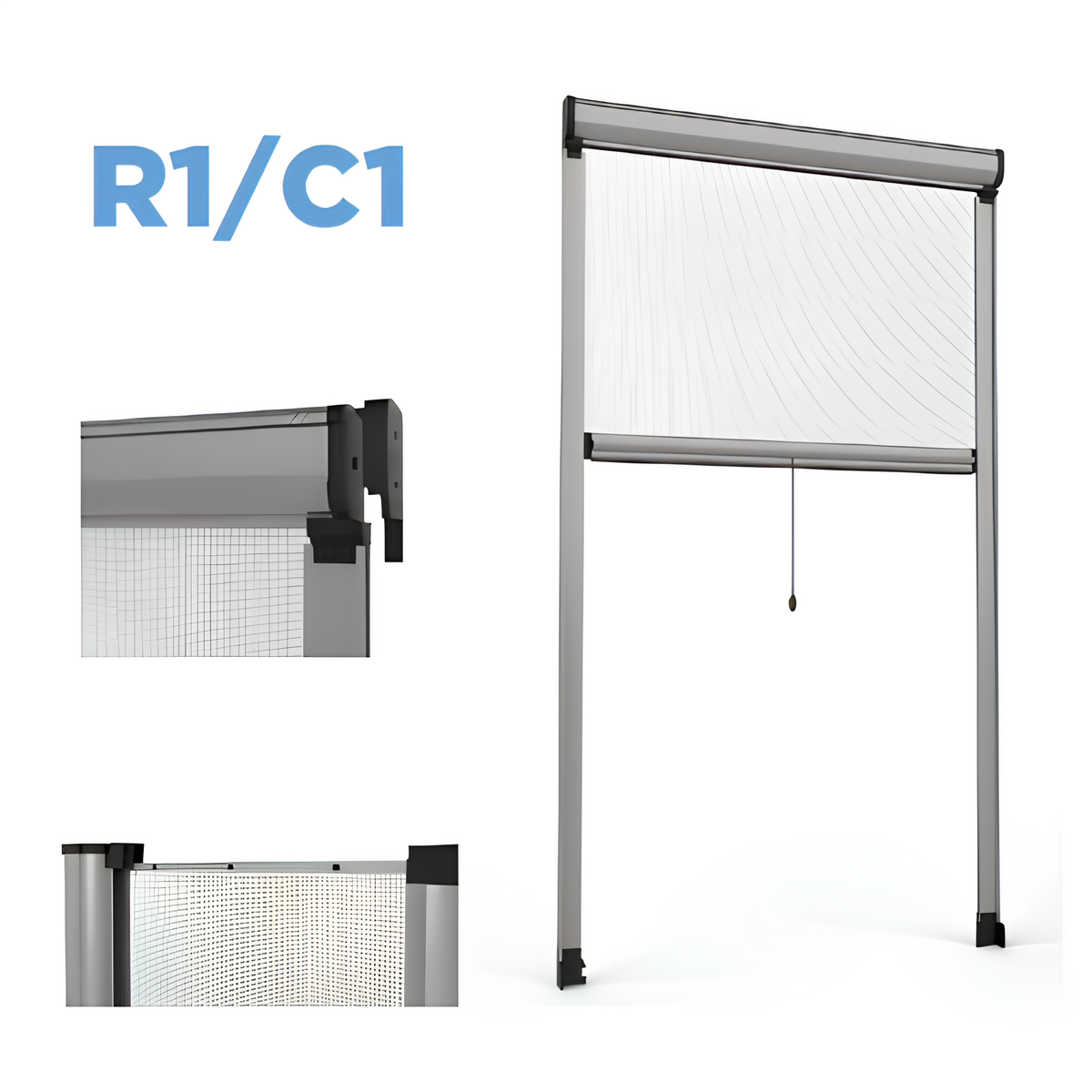

R1/C1 Vertical spring roll-up mosquito net for window

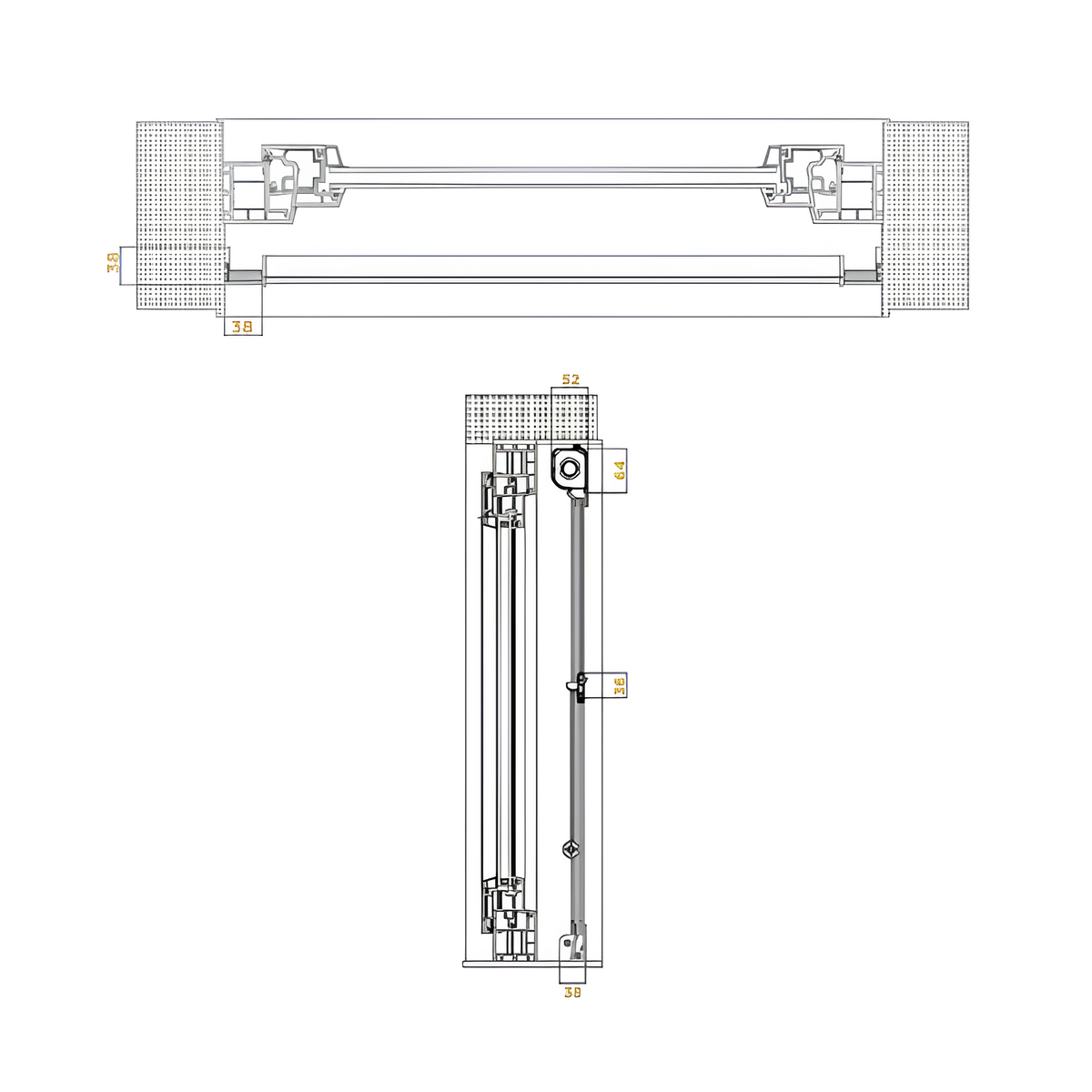

The R1/C1 model is the quintessential traditional insect screen. It features a vertical spring-winding mechanism with a 50 mm or 38 mm housing. The telescopic end caps allow for a margin of error of up to 5 mm, and this system also makes installation easier. Wind-resistant buttons on the sides prevent the fabric from coming out of the guides in windy conditions or if accidentally pushed.

Available sizes:

Model R: Width (cm) 60–180 and Maximum Height 260 cm

Model C: Width (cm) 50–180 and maximum height 180 cm

-

Measurement guidelines:

FILOGRASSO SRL ASSUMES NO LIABILITY FOR INCORRECT MEASUREMENTS PROVIDED BY THE CUSTOMER; RETURNS ARE NOT ACCEPTED IF THE PRODUCT MEETS THE DIMENSIONS SPECIFIED BY THE CUSTOMER AT THE TIME OF ORDER. IN THE EVENT OF AN ERROR ON OUR PART, WE WILL RESOLVE THE ISSUE AS QUICKLY AS POSSIBLE (RETURNS ARE NOT ACCEPTED FOR CUSTOM-MADE ITEMS)

For accurate results, it is recommended to take measurements at three points and enter the smallest of the three measurements into the configurator.

Measurement example:

Width: Top (cm) 100.3 - Middle (cm) 100.1 - Bottom (cm) 100.4

Width to enter (cm): 100.1

Height: Left Side (cm) 100.3 - Center (cm) 100.1 - Right Side (cm) 100.4

Height to enter (cm): 100.1

-

Clear Opening Measurement and Finished Measurement:

Clear Opening Measurement (precise dimensions of the opening) = exact measurement of the opening; from this measurement, we will subtract the millimeters necessary for proper installation.

Finished Measurement (precise dimension of the screen) = exact measurement of the screen; YOU have subtracted the millimeters necessary for proper installation from this measurement.

Finished Measurement (precise dimension of the screen) = Clear Opening Measurement (precise dimension of the opening) minus 2 mm

Example: Clear Opening 100 cm = Finished Measurement 99.8 cm

-

Color:

Available colors

-

Mesh:

Note: For blackout and filter screens, the maximum height is 180 cm only on the 50 mm R-type box

Available mesh details

-

Spring type

The Slow-Close Spring system controls the retraction of the fabric, slowing its ascent in a uniform manner.

Can be installed on:

Minimum width 60 cm.

Model C Maximum height 140 cm

Model R Maximum height 260 cm

-

SHIPPING AND DELIVERY TIMES:

Shipping will take place within 6–7 business days (excluding Saturdays, Sundays, and holidays) from the date of payment receipt, via courier: 3 business days for shipments within Italy and 5–10 days for shipments within Europe.

-

WARRANTY

As the shipment is insured, the customer must accept it subject to inspection upon delivery.

In the absence of this observation, Filograsso srl assumes no liability for any damages.
