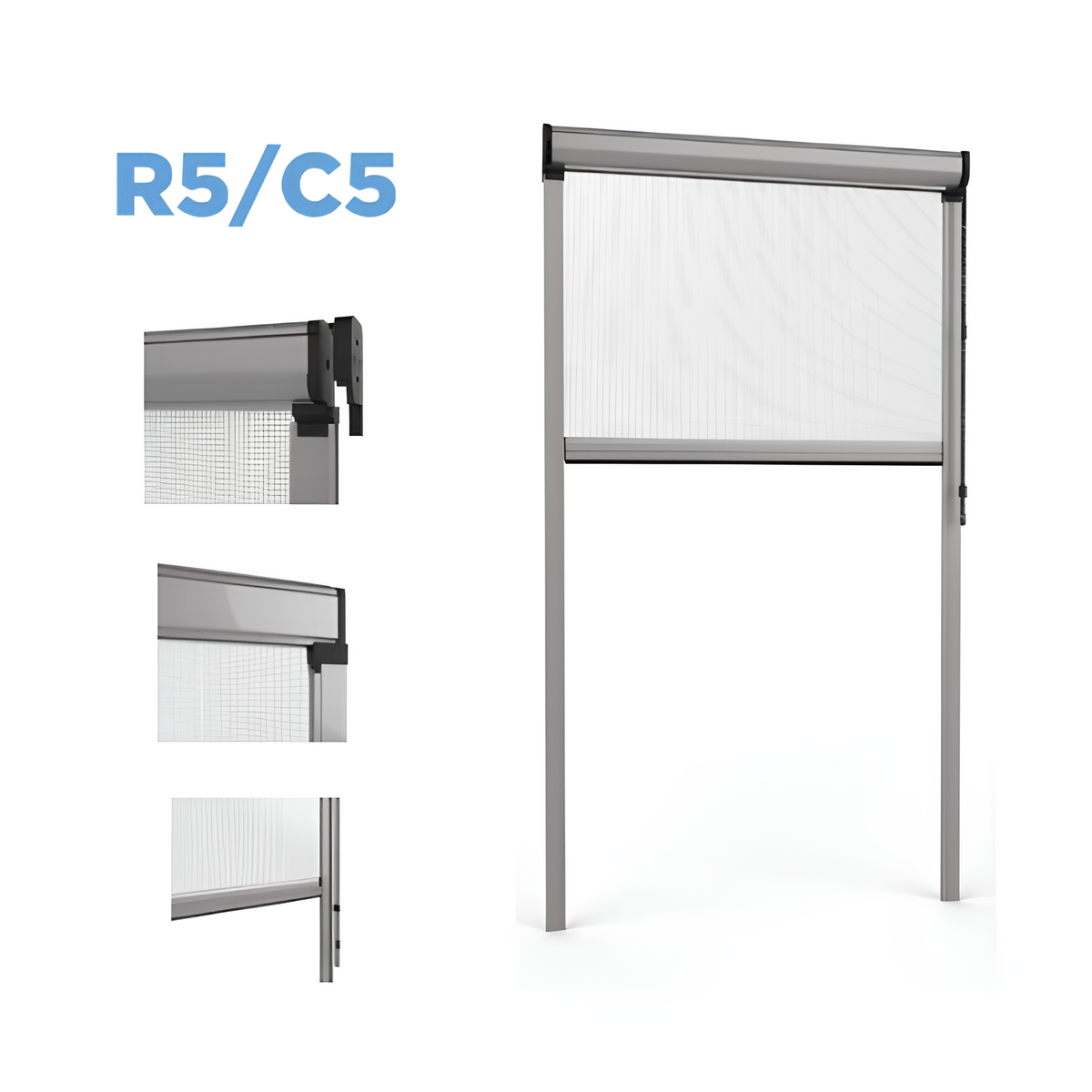

R5/C5 Vertical roll-up chain mosquito net for window or patio door with telescopic guides

Do you want to install a screen on a window, but the window opening is out of square? We have the solution for you: the R5/C5 model with dual tracks and a pull-chain mechanism. Thanks to its unique dual-track system, the screen “adapts” to the irregularities of the window opening, and you also get the convenience of the pull-chain mechanism. Maximum compensation for lateral misalignment is 9 mm. Wind-resistant buttons on the sides prevent the fabric from coming out of the guides in case of wind or accidental pressure. Upon request, it can be installed with external opening controls as well. This dual control allows the screen to be operated from both the inside and the outside. Dual controls on the same side are available only on 50 mm R-series cassettes.

Available sizes:

Model R: Width (cm) 40–180 and Maximum Height 260 cm

Model C: Width (cm) 40–160 and maximum height 180 cm

-

Measurement guidelines:

FILOGRASSO SRL ASSUMES NO LIABILITY FOR INCORRECT MEASUREMENTS PROVIDED BY THE CUSTOMER; RETURNS ARE NOT ACCEPTED IF THE PRODUCT MEETS THE DIMENSIONS SPECIFIED BY THE CUSTOMER AT THE TIME OF ORDER. IN THE EVENT OF AN ERROR ON OUR PART, WE WILL RESOLVE THE ISSUE AS QUICKLY AS POSSIBLE (RETURNS ARE NOT ACCEPTED FOR CUSTOM-MADE ITEMS)

For accurate results, it is recommended to take measurements at three points and enter the smallest of the three measurements into the configurator.

Measurement example:

Width: Top (cm) 100.3 - Middle (cm) 100.1 - Bottom (cm) 100.4

Width to enter (cm): 100.1

Height: Left Side (cm) 100.3 - Center (cm) 100.1 - Right Side (cm) 100.4

Height to be entered (cm): 100.1

-

Clear Opening Measurement and Finished Measurement:

Opening Measurement (precise dimensions of the opening) = exact measurement of the opening; from this measurement, we will subtract the millimeters necessary for proper installation.

Finished Measurement (precise size of the screen) = exact measurement of the screen; YOU have subtracted the millimeters necessary for proper installation from this measurement.

Finished Measurement (precise dimension of the screen) = Clear Opening Measurement (precise dimension of the opening) minus 2 mm

Example: Clear Opening 100 cm = Finished Measurement 99.8 cm

-

Color:

Available colors

-

Mesh:

Note: For blackout and filter screens, the maximum height is 180 cm only on the 50 mm R-type box

Available mesh details

-

SHIPPING AND DELIVERY TIMES:

Shipping will take place within 6–7 business days (excluding Saturdays, Sundays, and holidays) from the date of payment receipt, via courier: 3 business days for shipments within Italy and 5–10 days for shipments within Europe.

-

WARRANTY

As the shipment is insured, the customer must accept it subject to inspection upon unloading.

In the absence of this observation, Filograsso srl assumes no liability for any damages.
